The total load on a cable tray is calculated by summing the weight of all cables, the tray itself, and any additional live or environmental loads, then applying a safety factor.

Step 1: Identify Cable Loads

The primary load comes from the cables themselves. To calculate this:

• Determine the weight per unit length of each cable type (e.g., copper, aluminum, armored, or unarmored) and the number of cables.
• Multiply the weight per unit length by the number of cables and the tray span. Formula: Cable Load = Cable Weight × Quantity × Span Length .

Step 2: Include Tray Weight

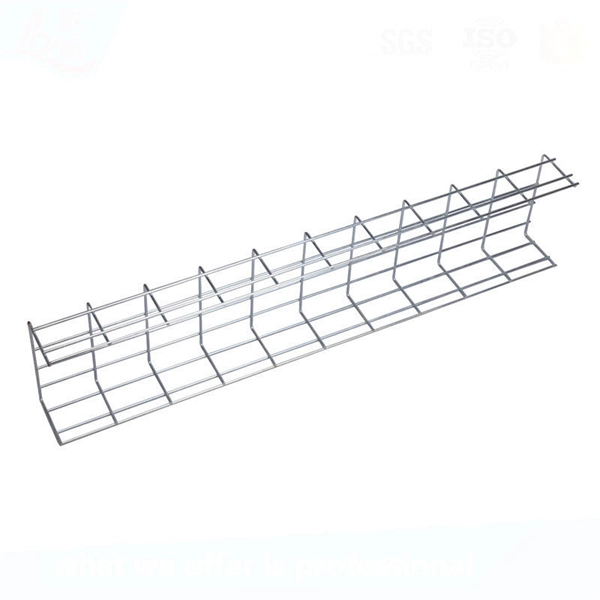

Add the weight of the tray itself, which depends on the material (steel, aluminum, FRP) and tray type (ladder, trough, wire mesh). Formula: Tray Load = Tray Weight per Meter × Span Length .

Step 3: Account for Additional Loads

Consider temporary or environmental loads:

• Live loads: Maintenance personnel, tools, or equipment placed on the tray.
• Environmental loads: Snow, ice, wind, or seismic forces for outdoor installations. Formula: Additional Load = Sum of all temporary and environmental forces per span .

Step 4: Calculate Total Applied Load

Combine all loads to determine the total applied load on the tray: Total Applied Load = Cable Load + Tray Load + Additional Loads For safety, apply a safety factor (typically 1.2–1.5): Design Load = Total Applied Load × (1 + Safety Factor),

Step 5: Determine Load on Supports

If the tray is supported at intervals, calculate the load on each support: Weight on Support = Total Load of Span / Number of Supports per Span For example, if a 5-meter span carries 50 kg, and there are two supports, each support bears 25 kg .

Step 6: Verify Tray Fill and Heat Dissipation

Ensure the tray is not overcrowded:

• Maintain a fill ratio of 40–50% for power cables to allow proper ventilation and heat dissipation.
• Consider future cable additions to avoid oversizing or undersizing .

Step 7: Check Against Manufacturer and Standards

• Refer to NEMA, NEC, or local codes for maximum allowable loads and support spacing.
• Confirm that the calculated design load does not exceed the tray's rated capacity . By following these steps, you can accurately calculate the load on a cable tray, ensure safe installation, and select the appropriate tray type and support spacing for your project.
