A core switch adapter point is the physical port or interface on a core switch used to connect to distribution or access switches, typically via fiber or high-speed Ethernet links.

Understanding Core Switch Adapter Points

A core switch serves as the backbone of a network, aggregating traffic from multiple distribution switches and providing ultra-low latency and high throughput across the network . The adapter points on a core switch are the ports or slots where transceivers or modules are installed to connect to other switches or network devices. These ports can support speeds ranging from 10G to 400G+, depending on the switch model and network requirements .

Types of Adapter Points

1. SFP/SFP+ Ports: Small form-factor pluggable ports used for fiber connections, supporting single-mode or multi-mode fiber. These are common for connecting core switches to distribution switches over longer distances .

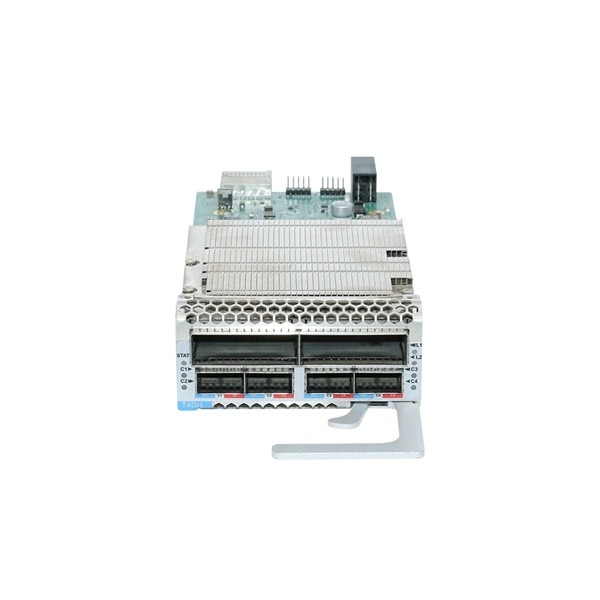

2. QSFP/QSFP28 Ports: High-speed ports for 40G or 100G connections, often used in data centers or high-capacity networks .
3. Ethernet Ports: Copper or fiber Ethernet ports for shorter connections, typically 1G or 10G, used in smaller networks or collapsed core architectures .

Connecting Core Switches

• Point-to-Point Links: Each adapter point typically connects directly to a corresponding port on a distribution or aggregation switch, forming a dedicated link for high-speed data transfer .
• Redundancy and Aggregation: Core switches often use link aggregation (LAG) or multi-chassis link aggregation (MCLAG) to combine multiple adapter points for higher bandwidth and failover protection .
• Transceiver Selection: Ensure the correct transceiver type (LC/SC/ST connectors) matches the fiber cabling and distance requirements. Single-mode fiber is used for long distances, while multi-mode fiber is suitable for shorter links .

Best Practices

• Use dual core switches for redundancy, connecting each distribution switch to both core switches to prevent single points of failure .
• Maintain consistent port speeds and compatible transceivers across all connected devices.
• Plan the number of adapter points based on the number of distribution switches and expected traffic, ensuring scalability for future growth . In summary, a core switch adapter point is a critical interface for connecting the backbone of a network to other layers, supporting high-speed, redundant, and scalable connections through fiber or Ethernet links, with careful selection of transceivers and port types to match network topology and performance requirements .
