Optical cable power is calculated using the power budget, which accounts for transmitter output, receiver sensitivity, fiber attenuation, and losses from connectors and splices.

Understanding Optical Power Budget

The optical power budget (PB) is the difference between the transmitter's output power and the receiver's minimum required input power. It represents the maximum allowable loss in the fiber link to ensure proper operation. The formula is: PB (dB) = Transmitter Power (dBm) – Receiver Sensitivity (dBm) For example, if a transmitter outputs -3 dBm and the receiver requires -32 dBm, the available power budget is: PB = -3 – (-32) = 29 dB .

Accounting for Fiber Losses

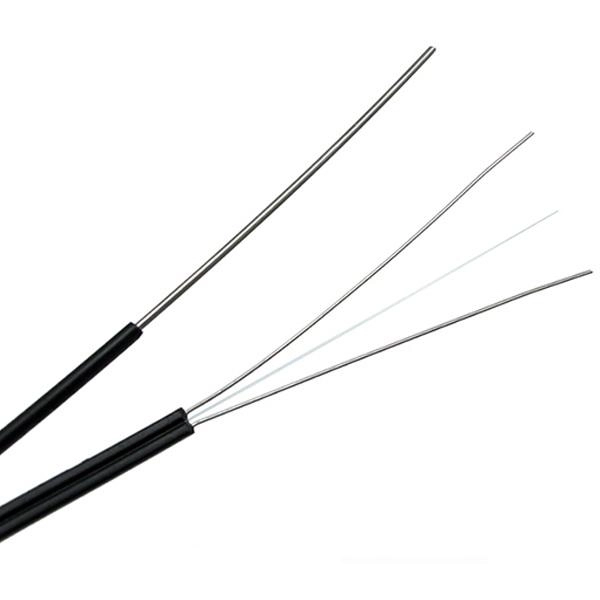

Fiber attenuation reduces signal power as light travels through the cable. Attenuation is measured in dB/km and depends on fiber type, wavelength, and quality. The total fiber loss is: Fiber Loss (dB) = Fiber Attenuation (dB/km) × Fiber Length (km) For instance, a 10 km single-mode fiber with 0.4 dB/km loss results in: Fiber Loss = 0.4 × 10 = 4 dB .

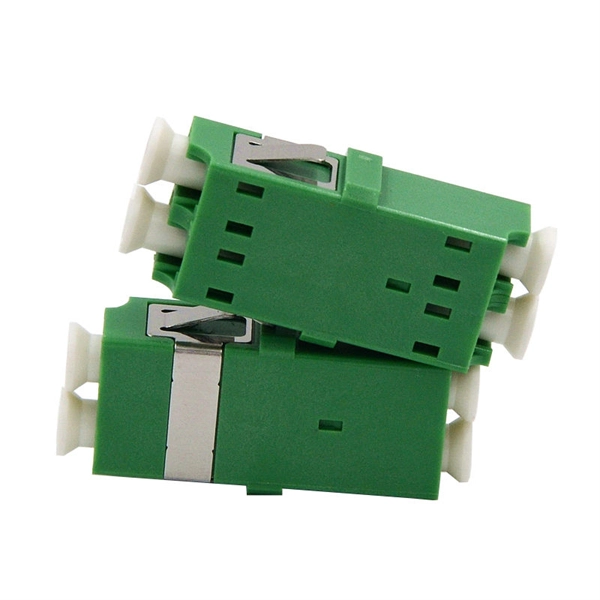

Including Connector and Splice Losses

Connectors and splices introduce additional losses:

• Connector loss: typically 0.2–0.5 dB per connector
• Splice loss: typically 0.1 dB per splice Total link loss is calculated as: Total Loss (dB) = Fiber Loss + (Number of Connectors × Connector Loss) + (Number of Splices × Splice Loss) .

Ensuring Sufficient Power

To ensure reliable operation: Total Loss ≤ Power Budget If the total loss exceeds the power budget, you may need to reduce fiber length, improve fiber quality, or use optical amplifiers.

Output Power Calculation

The output power at the receiver can also be calculated using: P_out (dBm) = P_in (dBm) – Total Loss (dB) Where P_in is the transmitter power. This allows verification that the received signal meets the receiver sensitivity requirement .

Practical Considerations

• Single-mode fiber (SMF) is preferred for long distances due to lower attenuation.
• Multi-mode fiber (MMF) is suitable for shorter distances and has higher attenuation.
• Always use worst-case values for transmitter power, receiver sensitivity, and fiber loss to ensure a margin of safety .
• Include all components in the link, such as splitters in passive optical networks, when calculating the total loss . By following these steps, you can accurately calculate the optical cable power and ensure your fiber-optic network operates reliably.
