Cable trays in seismic zones generally require seismic bracing to prevent lateral, longitudinal, and uplift movement during earthquakes, especially when supporting critical or high-density cables.

When Seismic Bracing is Required

Seismic bracing for cable trays is typically mandated by local building codes, structural design criteria, and project-specific electrical or MEP specifications. It is especially necessary when:

• The tray carries high-density power or critical communication cables
• The installation is in a high-seismicity area (e.g., California, Japan, parts of South America)
• Cable trays cross seismic joints or connect structures with different stiffness
• The tray route is elevated or long, increasing susceptibility to sway or uplift Even if a tray is supported by standard hangers or trapeze systems, these supports alone cannot reliably resist seismic forces, including lateral sway, longitudinal movement, or cable spill during ground motion (Sinotianying) .

Types of Seismic Bracing

Seismic bracing can be categorized into:

• Cable bracing: Works in tension and requires two opposing brace assemblies at each location
• Rigid bracing: Works in both tension and compression, typically requiring one brace per location, but may be limited by drop length The choice depends on the tray load, height, and expected seismic forces (Eaton) .

Design Considerations

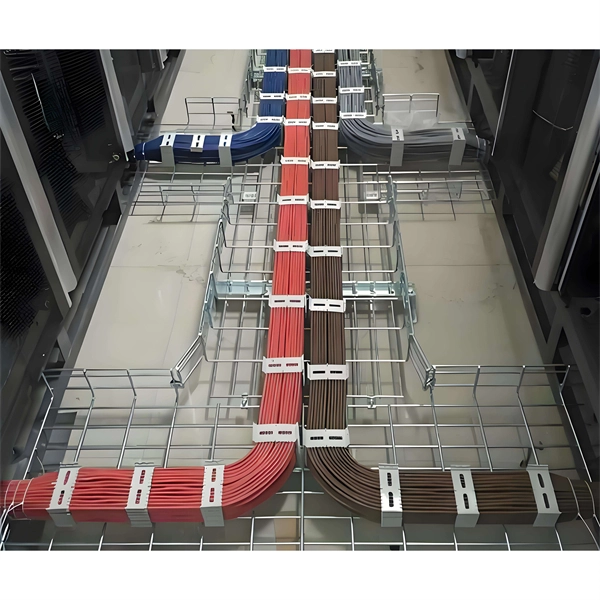

1. Tray Type and Load: Ladder trays are often preferred for primary distribution due to their structural stiffness and cable retention. Perforated, trough, or wire mesh trays may be used but require careful evaluation of mass, support spacing, and retention (CableTrayPro) .
2. Support and Attachment: Bracing must form a continuous load path from the tray to the building structure, including strut channels, clamps, connectors, and anchors. Standard gravity-only supports are insufficient in high-seismicity zones (Sinotianying) .
3. Cable Retention: Open trays must include retention hardware to prevent cables from spilling during seismic events. Retention should be integrated into the seismic system, not added later (CableTrayPro) .
4. Anchor Verification: All anchors, clamps, and building attachments must be verified for seismic loads, including conditions like cracked concrete. Hardware suitable for gravity support may not meet seismic requirements (CableTrayPro) .
5. Documentation and Inspection: Final verification and documentation are essential to ensure compliance with seismic design criteria and local codes (CableTrayPro) .

Case Study Example

In Seattle, Washington, a telecommunications facility installed multiple layers of cable trays above equipment cabinets. Due to high seismicity, the trays were diagonally braced longitudinally using proprietary steel members and bolts. The design accounted for maximum anticipated cable loads, totaling over 110,000 kg across the facility, and complied with the 1994 Uniform Building Code and Bellcore GR-1275-CORE criteria (IITK) .

Conclusion

Seismic bracing for cable trays is not optional in high-risk areas or for critical systems. Proper design ensures:

• Stability of cable trays during earthquakes
• Protection of critical electrical and communication systems
• Compliance with building codes and project specifications Even in moderate seismic zones, evaluating the importance of the cables, tray height, and local seismic data is essential to determine whether bracing is required.
