You cannot directly connect a standard copper network cable to a fiber optic patch cord; you need compatible media converters or transceivers to bridge the two types of networks.

Understanding the Connection

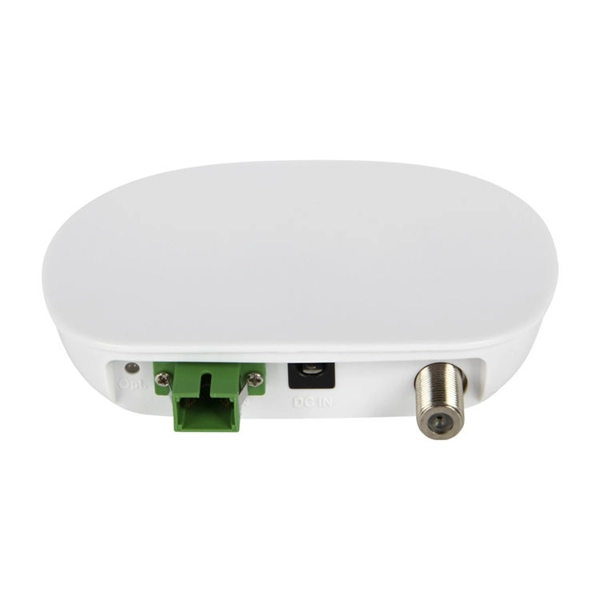

Fiber optic patch cords carry data as light signals, while standard network cables (like Cat5e or Cat6) transmit electrical signals. To connect them, you must use a media converter or a network device with both fiber and copper ports. The fiber patch cord plugs into the fiber port of the device, and the network cable connects to the copper Ethernet port, allowing seamless communication between the two media types .

Choosing the Right Fiber Patch Cord

• Single-mode vs. Multi-mode: Single-mode fibers have a narrow core (~9 µm) for long-distance transmission, while multi-mode fibers have a wider core (50–62.5 µm) for shorter distances .

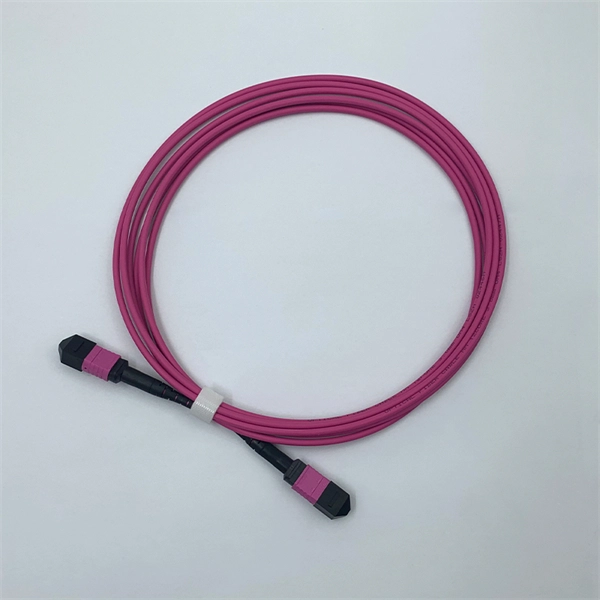

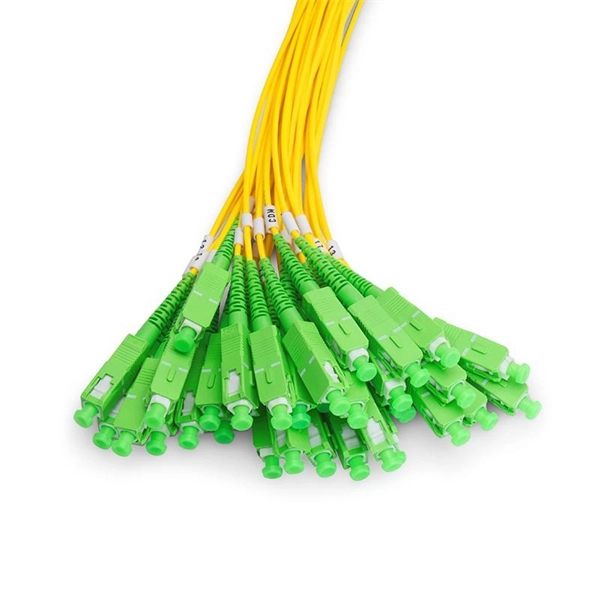

• Connector types: Common connectors include LC, SC, ST, and MPO/MTP. LC connectors are small and suitable for high-density setups, SC connectors are widely used in PON networks, and MPO/MTP connectors handle multiple fibers simultaneously .
• Polish type: UPC (flat) and APC (angled) finishes affect signal reflection; APC is preferred for high-precision applications .

Installation Best Practices

1. Clean connectors: Always clean fiber connectors before mating to prevent signal loss .
2. Handle carefully: Avoid bending the fiber beyond its minimum bend radius to prevent attenuation or breakage .
3. Check compatibility: Ensure the fiber type and connector match the transceiver or media converter specifications .
4. Use patch panels: Organize connections with patch panels to reduce stress on cables and simplify maintenance .
5. Label and document: Proper labeling ensures traceability and reduces troubleshooting time .

Connecting Steps

1. Inspect and clean the fiber patch cord connector.
2. Plug the fiber patch cord into the fiber port of a media converter, switch, or transceiver.
3. Connect the network cable to the copper Ethernet port of the same device.
4. Power on the devices and verify link status.
5. Test the connection for signal integrity and throughput. By following these steps and best practices, you can safely and efficiently bridge a fiber optic network with standard Ethernet devices, ensuring low signal loss and reliable performance .
