Pigtail connectors use pre-terminated connectors on one end, such as wire nuts, spade terminals, ring terminals, or fiber optic connectors like LC, SC, ST, and FC, while the other end is left bare for splicing or crimping.

Electrical Pigtail Connectors

Electrical pigtails are short wires with a connector on one end and bare wire on the other. Common connector types include:

• Wire nuts (twist-on connectors): Secure multiple copper wires together, often color-coded for wire gauge and function (black for live, white for neutral, green for ground) .
• Spade terminals: Flat, fork-shaped connectors that slide under screw terminals for secure attachment .
• Ring terminals: Circular connectors that fit around a screw or bolt for a strong mechanical and electrical connection .
• Butt connectors: Cylindrical connectors used to join two wires end-to-end, often crimped or soldered .
• Push-in or lever-style connectors: Allow quick insertion of wires without twisting, often reusable . These connectors are widely used in automotive wiring, household electrical systems, and industrial applications to repair, extend, or adapt wiring without replacing the entire harness .

Fiber Optic Pigtail Connectors

Fiber optic pigtails have a pre-installed optical connector on one end and a stripped fiber on the other for fusion splicing. Common types include:

• LC (Lucent Connector): Small form factor, widely used in data centers .
• SC (Subscriber Connector): Push-pull connector, common in telecom networks .
• ST (Straight Tip): Bayonet-style connector, often used in legacy networks .

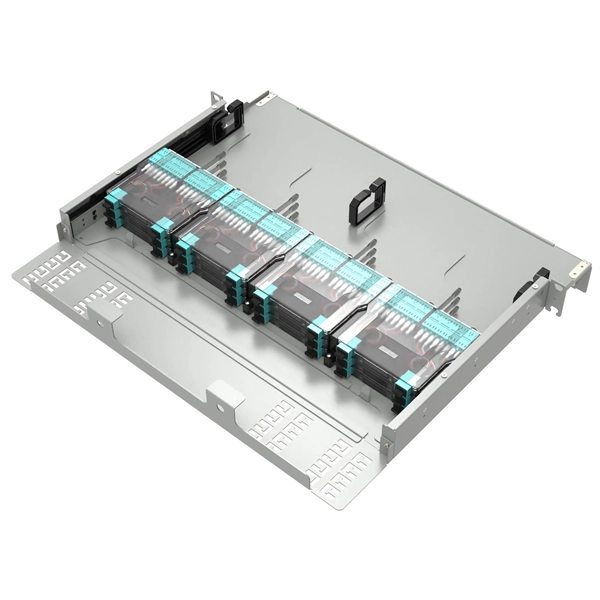

• FC (Ferrule Connector): Screw-on connector, used in high-vibration environments . Fiber pigtails are typically single-mode (OS2) or multimode (OM3/OM4) and are spliced to trunk fibers inside splice trays to maintain signal integrity .

Key Considerations

When selecting a pigtail connector:

• Match the wire gauge or fiber type to ensure compatibility.
• Consider the environment (moisture, vibration, temperature) for durability.
• Use factory-terminated connectors to reduce installation errors and improve reliability . Pigtail connectors simplify installation, protect wires from stress, and provide a reliable interface between devices and main wiring systems, whether in electrical or fiber optic applications .
