To connect a fiber optic cable, plug it into the ONT's optical port, link the ONT to your router via Ethernet, and configure the router with your ISP credentials for full connectivity.

Step 1: Prepare Your Equipment

Ensure you have the following components:

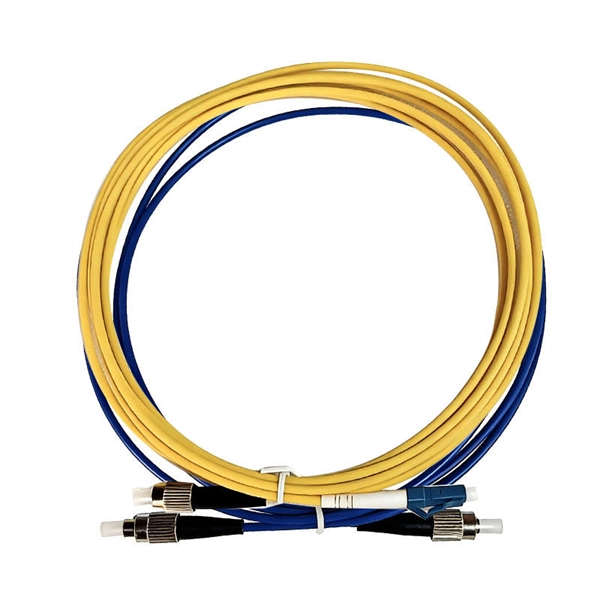

• Fiber optic cable (typically SC/APC or SC/UPC connectors)
• Optical Network Terminal (ONT) provided by your ISP
• Fiber-ready router with a WAN or SFP port
• Ethernet cable to connect the ONT to the router
• Power adapters for both ONT and router

Step 2: Connect the Fiber Cable

1. Locate the fiber wall outlet where your ISP's fiber line enters your home.
2. Remove protective dust caps from both the fiber cable and the ONT port.
3. Align the connector key or tab and insert the fiber cable into the ONT's optical port until it clicks securely. Handle the fiber by its plastic housing to avoid damage .

Step 3: Link ONT to Router

1. Use an Ethernet cable to connect the ONT's LAN or GE1 port to the WAN port on your router.
2. Ensure the router is fiber-compatible; some advanced setups may use an SFP or SFP+ module for multi-gigabit connections .

Step 4: Power On Devices

1. Power on the ONT first and wait for the status lights to stabilize (usually 2–5 minutes).
2. Power on the router and wait for its indicator lights to confirm a successful connection .

Step 5: Configure Router Settings

1. Access the router's admin panel via a web browser (commonly 192.168.1.1 or 192.168.0.1).
2. Enter your ISP-provided credentials if required.
3. Enable optional settings like Quality of Service (QoS) for VoIP or video streaming.
4. Update the router firmware to ensure optimal performance and security .

Step 6: Verify Connection

• Connect a device via Wi-Fi or Ethernet and check for internet access.
• Run a speed test to confirm fiber performance.
• If the connection fails, reboot the ONT and router or contact your ISP .

Best Practices

• Clean connectors before insertion to prevent signal loss.
• Avoid bending the fiber cable beyond its minimum bend radius.
• Secure excess cable with velcro straps to prevent tension or damage.
• Use dust caps when ports are not in use to maintain signal integrity . By following these steps, you ensure a reliable fiber optic connection with optimal speed and stability, while protecting the delicate fiber components from damage.
