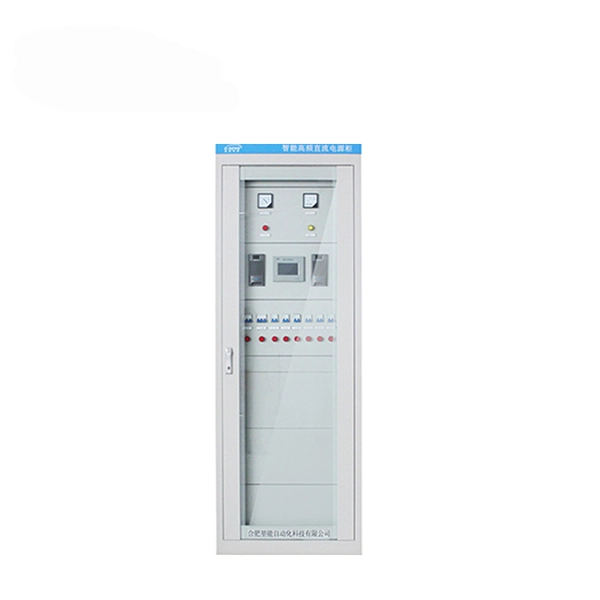

Proper installation of an electrical distribution box ensures safe power distribution, circuit protection, and compliance with electrical standards.

Preparation and Planning

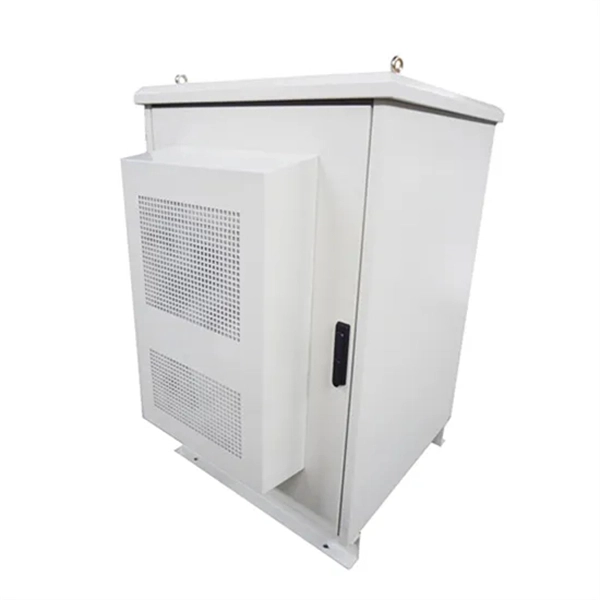

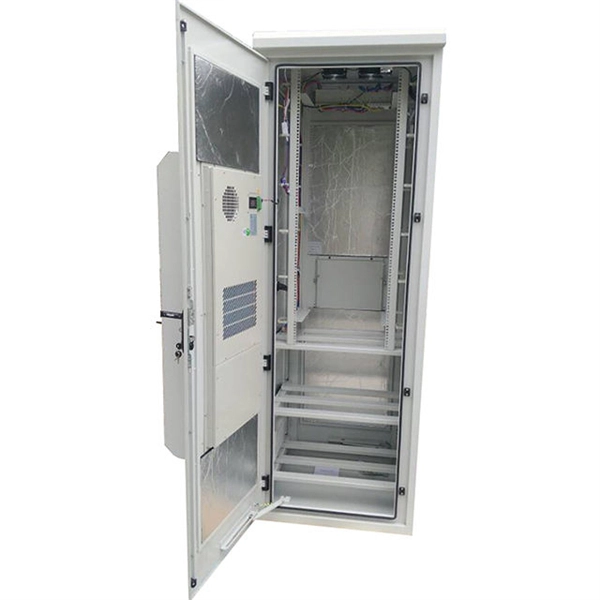

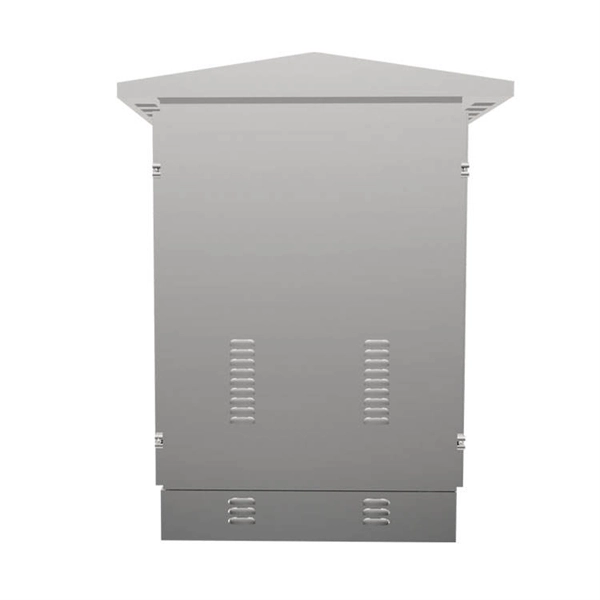

Before installation, select a suitable location that is dry, accessible, and well-ventilated, ideally around 1.5 meters above the floor for easy access. Avoid areas near water, flammable, or corrosive substances. For outdoor installations, ensure the box has adequate IP/NEMA ratings for waterproofing and consider rain covers or dehumidifiers if necessary. Ensure enough space around the box for ventilation, maintenance, and future expansion ( ).

Tools, Materials, and Safety Equipment

Tools: Screwdrivers, wire strippers, electric drill, multimeter, insulation resistance tester. Materials: Electrical enclosure, expansion bolts, fixing brackets, screws, terminal blocks, qualified wires, cable ties, insulating tape. Personal Protective Equipment (PPE): Insulating gloves, cut-resistant gloves, safety glasses, flame-resistant clothing, slip-resistant shoes ( ).

Installation Steps

1. Mark and Drill: Confirm the installation location, mark the mounting points, drill holes, and insert expansion bolts ( ).
2. Mount the Distribution Box: Align the box with the drilled holes and secure it with screws. Ensure it is stable and level ( ).
3. Wire Preparation: Strip insulation from wires, leaving an appropriate length of exposed conductor. Follow color coding standards: line (live), neutral, and ground ( ).
4. Install Circuit Breakers: Place independent circuit breakers according to your load requirements. Each circuit should have its own protection device ( ).
5. Termination: Connect conductors to their designated terminals: line to line, neutral to neutral, and ground to ground. Use busbars and terminal blocks for organized connections ( ).
6. Check Connections: Use a multimeter to verify continuity, insulation resistance, and correct wiring before powering on ( ).
7. Labeling and Documentation: Clearly label each circuit and breaker for easy identification and future maintenance. Record installation details for inspections ( ).

Additional Considerations

• Compliance: Follow local electrical codes (NEC, IEC, or regional standards) and use UL/CE-certified components ( ).
• Maintenance: Schedule regular inspections to ensure long-term reliability. Keep wiring neat and modular for future upgrades ( ).
• Special Components: Some boxes may include RCDs or RCBOs for additional protection against leakage currents ( ). By following these steps and safety measures, the distribution box will provide efficient, safe, and organized power distribution for residential, commercial, or industrial applications.
