Power in a household distribution box should be allocated by planning circuits according to load, using appropriate breakers, and ensuring proper wiring and safety devices.

Understanding the Distribution Box

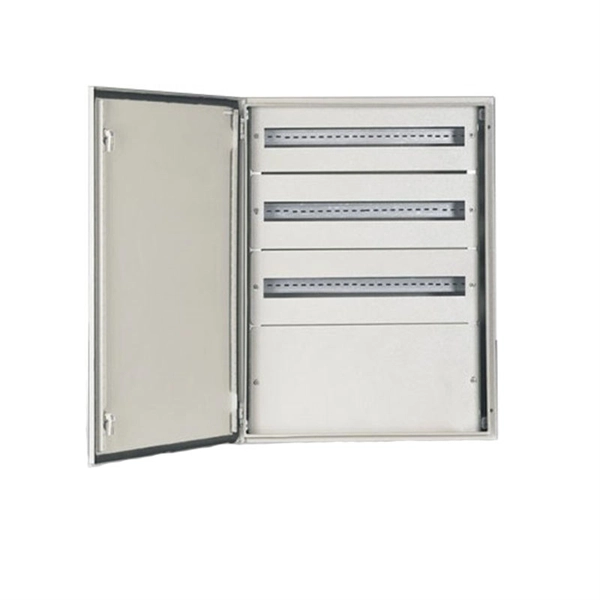

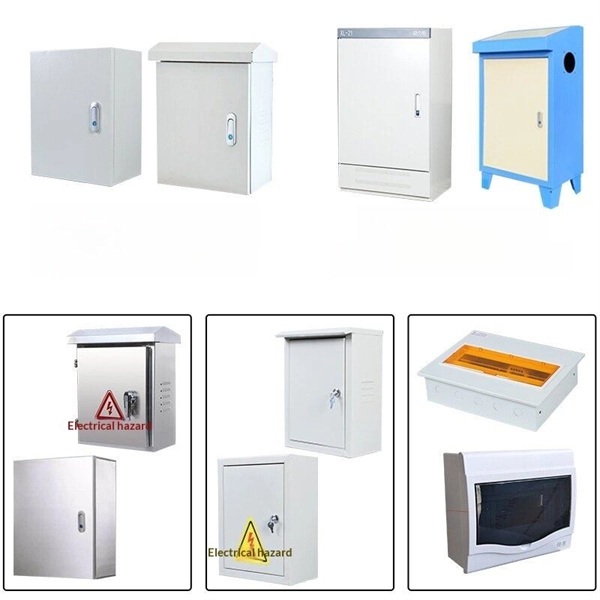

A household distribution box, also called a breaker box or consumer unit, is the central hub for electricity in a home. It receives power from the main supply and distributes it to individual circuits for lighting, appliances, and outlets ( ). The box typically contains:

• Main breaker (Double Pole MCB): Controls the overall power supply to the house ( ).
• Single Pole MCBs: Protect individual circuits and appliances.
• RCCB/RCD: Provides protection against earth faults and leakage currents.
• Neutral and ground bars: For safe return paths and grounding.

Steps to Allocate Power

1. Assess Electrical Load
   • List all appliances, lighting, and devices in the home.
   • Determine their power ratings and categorize them by type (lighting, high-power appliances, general outlets) ( ).
2. Plan Circuit Distribution
   • Assign separate circuits for high-power appliances like air conditioners, water heaters, and ovens.
   • Group lighting and general outlets into separate circuits to prevent overload.
   • Balance the load across the phases if using a multi-phase supply ( ).
3. Select Appropriate Breakers
   • Use a double-pole MCB for the main switch with sufficient amperage (commonly 63A for domestic installations) ( ).
   • Use single-pole MCBs for individual circuits, rated according to the expected load.
   • Install RCCBs for safety, especially in wet areas like kitchens and bathrooms ( ).
4. Wiring and Connection
   • Connect the main supply to the main breaker, then distribute to sub-circuits.
   • Ensure neat wiring, proper insulation, and secure connections to prevent short circuits ( ).
   • Maintain separation of wires with different voltage levels to avoid interference.
5. Installation and Safety
   • Mount the distribution box securely, level, and plumb, with adequate space for future maintenance ( ).
   • Ensure all fuses or breakers are installed correctly, and grounding is properly connected.
   • Regularly inspect the box for dust, moisture, or loose connections ( ).

Tips for Efficient Allocation

• Avoid overloading a single circuit; distribute high-power devices across multiple circuits.
• Reserve space in the box for future expansion.
• Label each breaker clearly to identify the corresponding circuit.
• Follow local electrical codes and standards for safety compliance. By carefully planning circuits, selecting the right protective devices, and maintaining proper wiring, a household distribution box can safely and efficiently manage power distribution throughout the home ( ).
